VHD (Variable Hybrid Drive)

Advanced Parallel Hybrid Ship Solution with 60/150/200/300 kW Motor/Generator Power.

COMPACTNESS CUSTOMIZATION ROBUSTNESS SAFETY
VHD Variable Hybrid Drive

VHD Product Overview

Reliable Propulsion Solution for Your Hybrid Systems

The VHD (Variable Hybrid Drive) is a transmission system suitable for small to medium applications. Its design allows easy installation on board and maintenance for hybrid drive train. The gear transmission is designed to achieve the best reliability and an optimal vibroacoustic isolation. The sound-absorption canopy combined with resilient mounts and shaft coupling are able to significantly reduce both air-borne and structural-borne noise. The Variable Hybrid Drive is engineered to be installed on the marine gearbox output, its reduction ratio (from 2.1:1 to 4.0:1) enables the adoption of low torque e-machines, guaranteeing a good matching with the propeller demand.

Compactness:

for engine rooms with limited space.

Robustness and reliability:

for long lasting experience, keeping performance stable over time.

Modularity:

Pursued through a standardization of clutches, e-machines and other hybrid components.

Safety:

State of the art electrical design with highest industrial standards and latest technologies.

Customization:

Adaptability:

Solution for pleasure and commercial vessel.

4

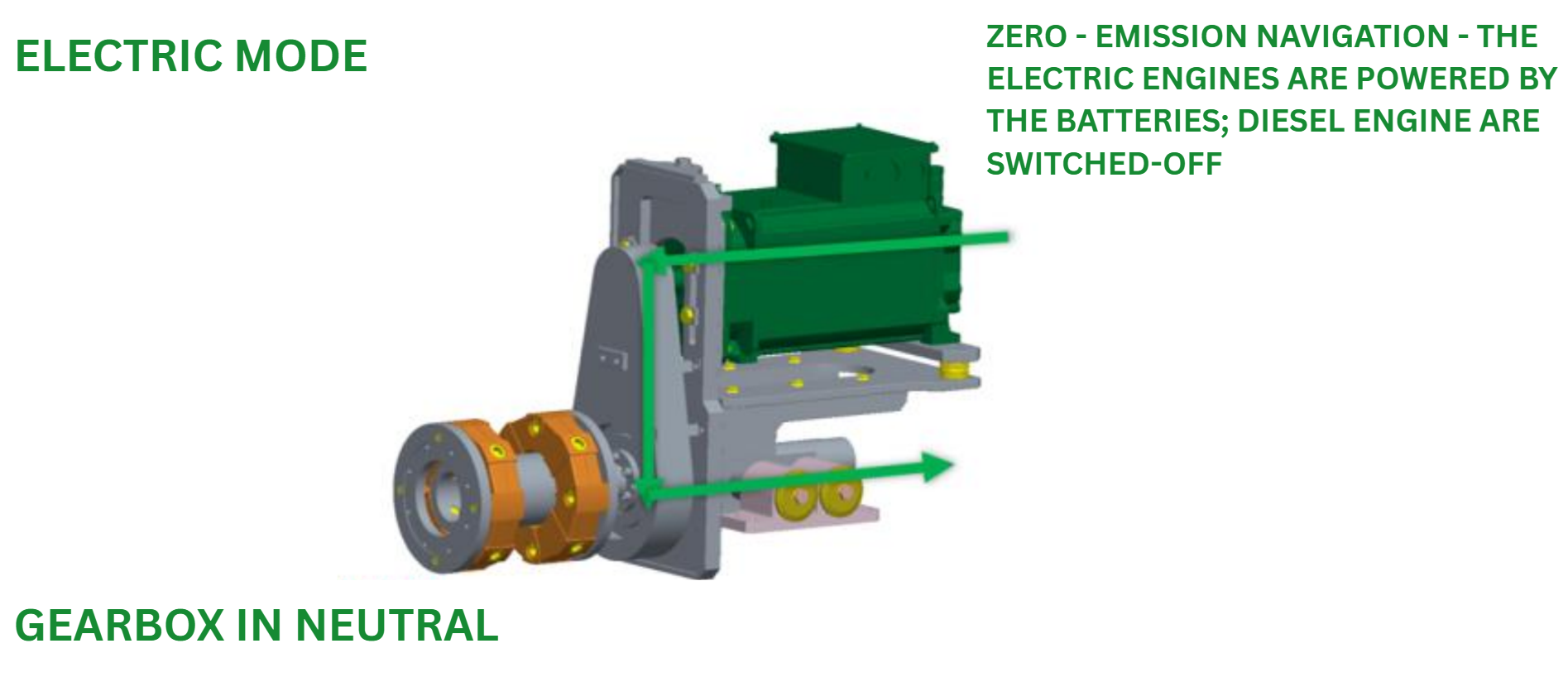

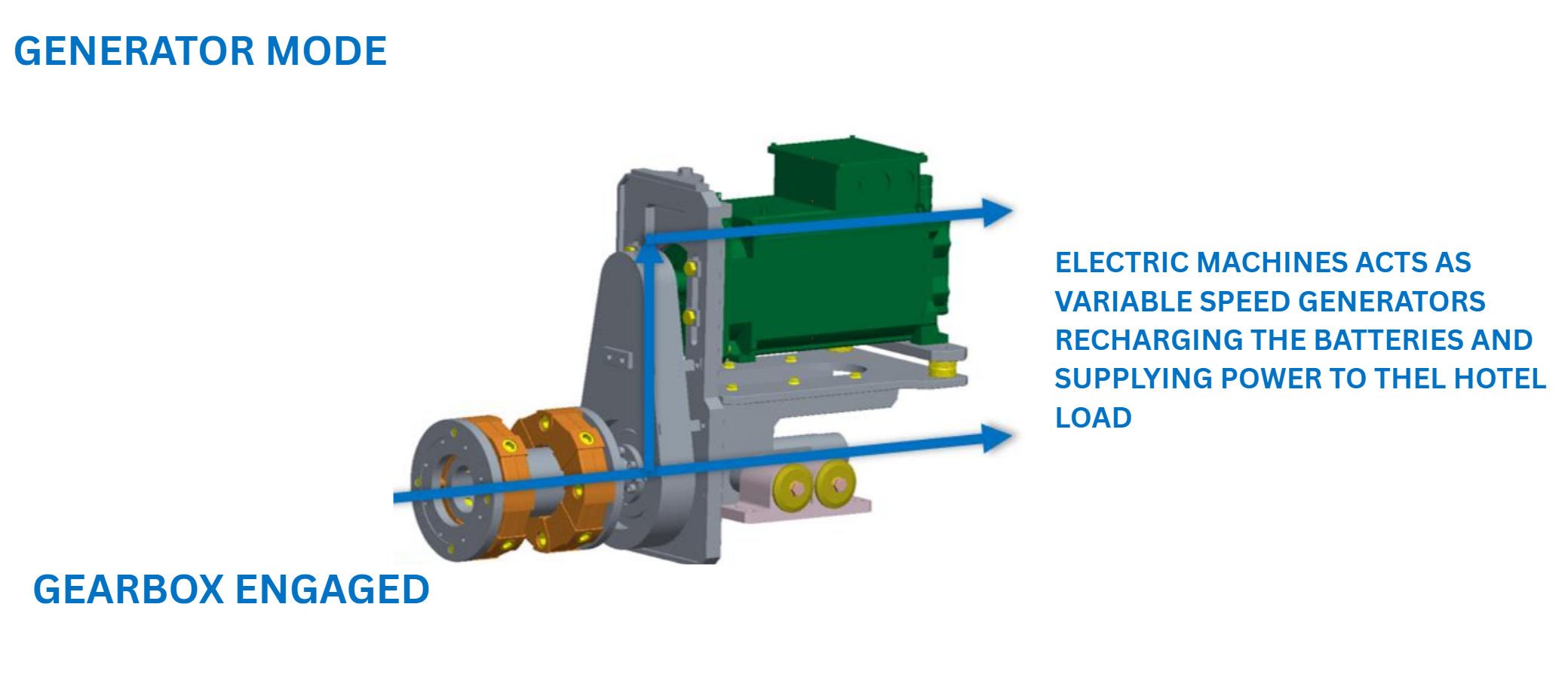

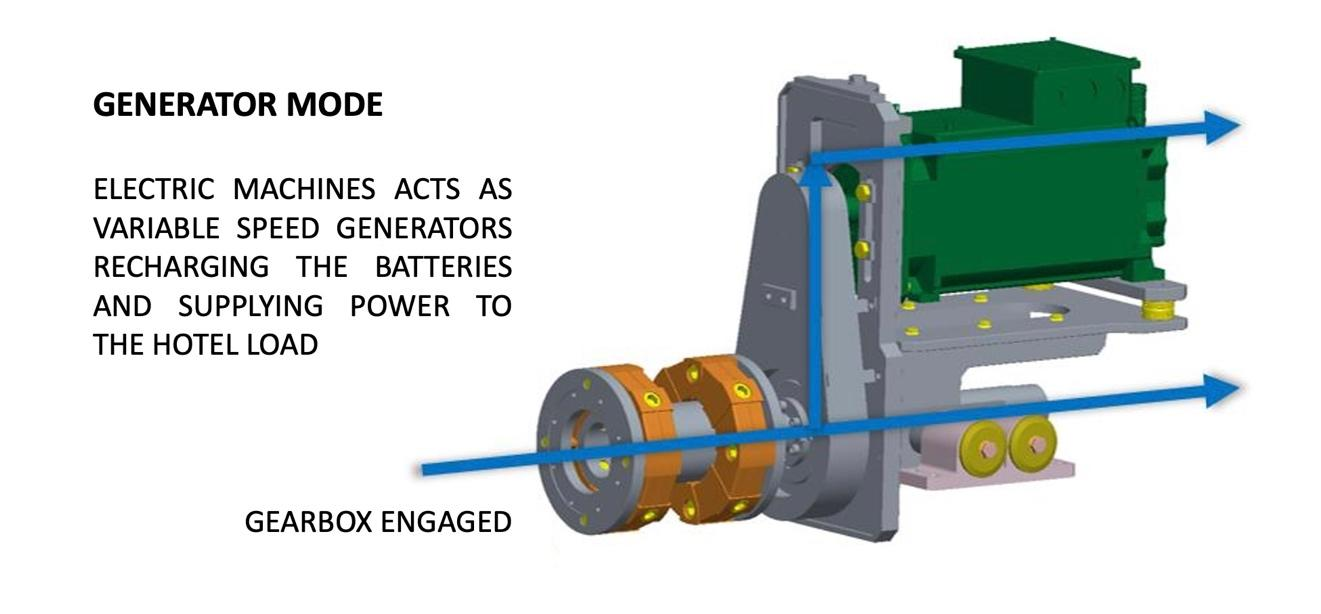

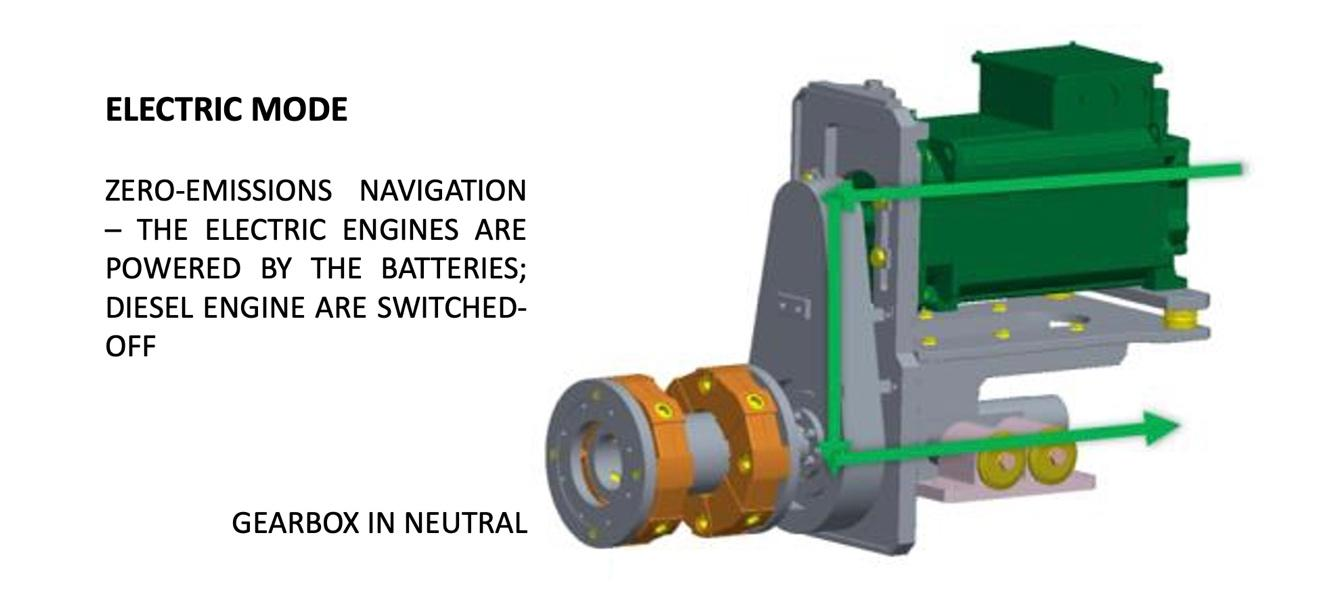

Operating Modes

60~300 kW

Motor/Generator power

254~502mm

Max Engine power

70~160mm

-56%

CO2 emission

VULKAN×GEES

Joint development

VHD Technical Specifications

VULKAN Scope:

Flexiable Coupling: MEGIFLEX-B
Damper: AVR-25 Double
Body: Transmission Box

VHD Features:

Dimension: 950 X 700 mm (D*L)
Weight: 400 kg
Nom. Power: 60/150/200/300 kW
Nom. Speed: 1800 rpm
Reduction Ratio Range: 2.1:1 ~ 4.0:1

GEES Scope:

e‑Motor: Permanent‑magnet AC motor (partner models selectable)
AC500V Motor: EM-PMI240/375
Converter: EC-C1200
Control: GCS / drive control interface

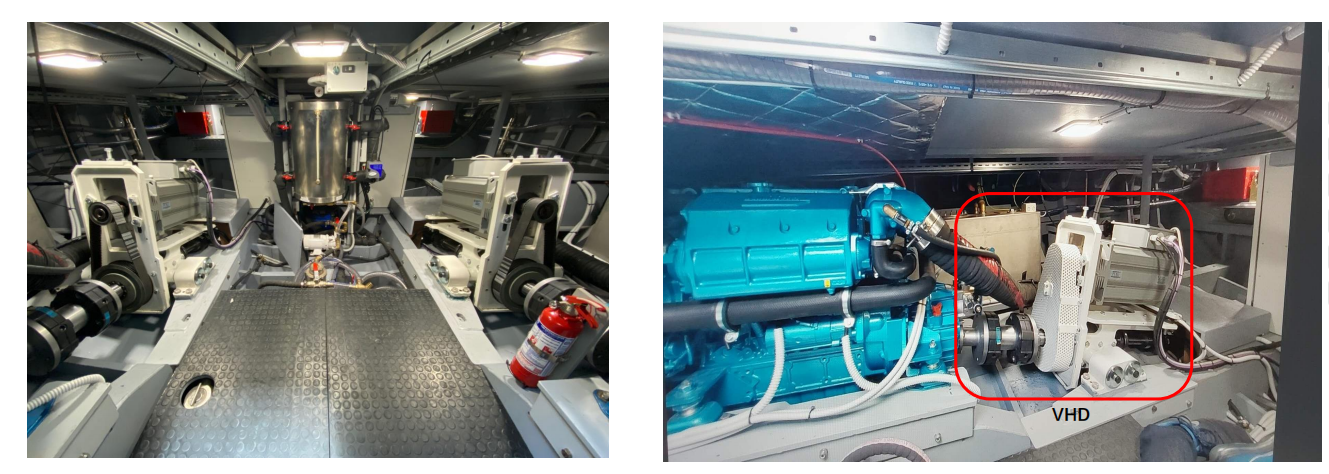

VHD Applications
