VED (Variable Electric Drive)

Full Electric Ship Transmission — up to 300 kW e‑Motor

Compact U‑shape transmission for new build and retrofit electric vessels. Integrated 3‑in‑1 solution: gearbox + eMotor + DC/AC converter — saves engine room space while ensuring stable, low‑vibration operation.

3‑in‑1 LESS SPACE OCCUPANCY LESS VIBRATION STABLE & RELIABLE
VED Variable Electric Drive

VED Product Overview

Reliable Inboard Propulsion Solution

The VED (Variable Electric Drive) is a compact transmission module designed for small full‑electric vessels (new build or retrofit). Key mechanical features include a dual‑gear reduction, integrated thrust bearing and an AVR damping system to reduce vibration and wear during high‑speed operation. The unit is intended to be integrated into our U‑Driver transmission layout, freeing valuable engine room footprint and increasing design flexibility.

Highly Integrated

Compact 3‑in‑1 assembly: gearbox + permanent‑magnet eMotor + DC/AC converter. Optional VULKAN flexible coupling.

Reduced Vibration

AVR damping and resilient mounts (VULKAN) minimise transmitted vibration to structure and hull.

Stable & Reliable

Dual‑gear reduction with built‑in thrust bearing provides long service life under variable loading.

Space Saving

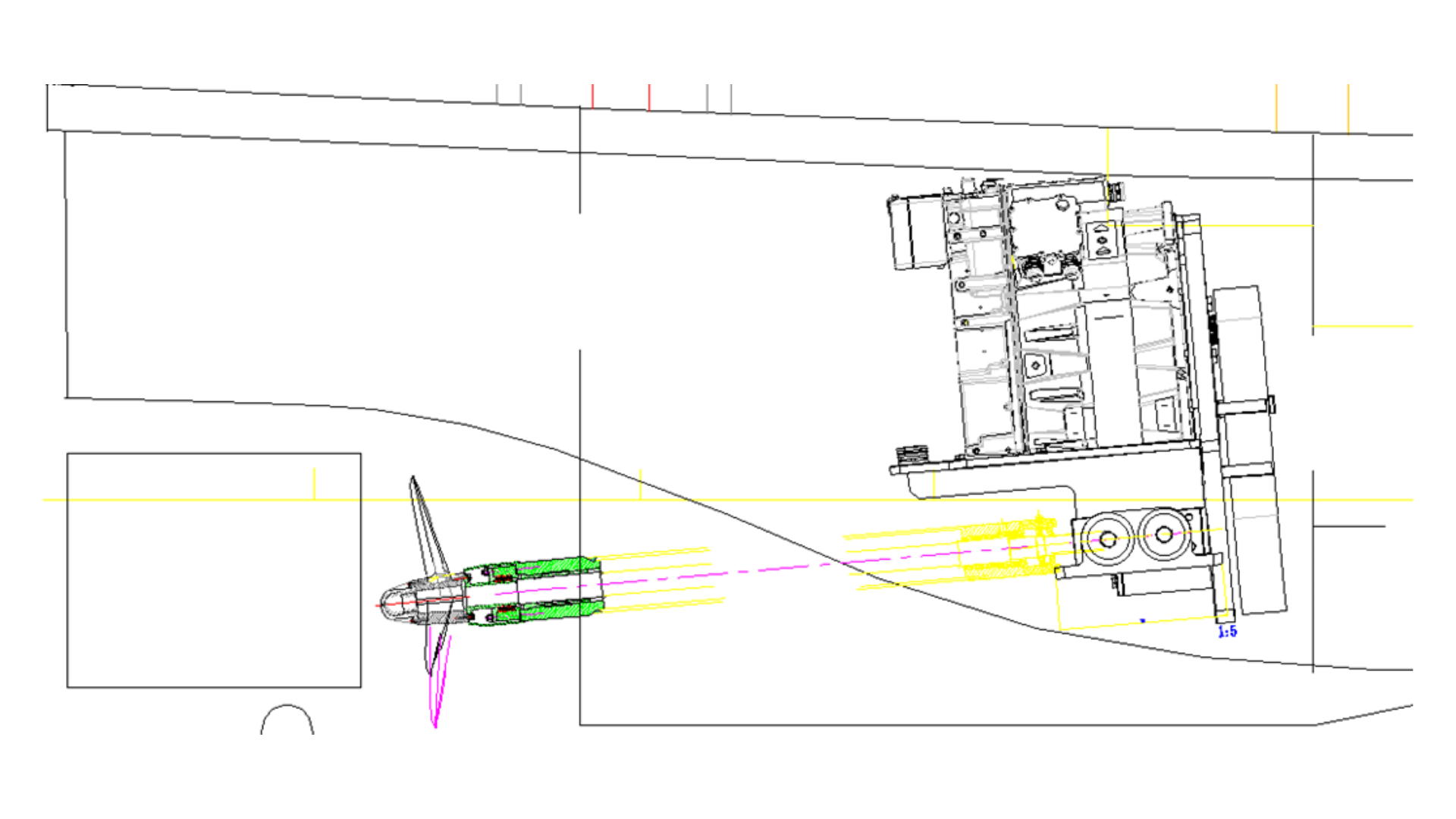

U‑shape transmission reduces engine room footprint compared with separate motor/gearbox arrangements.

3‑in‑1

Gearbox + eMotor + DC/AC Converter

Up to 300 kW

e‑Motor application

900 rpm

Max propeller speed

VULKAN × GEES

Partners / Scope

VED Technical Specifications

Mechanical Scope

Gear Type: Dual‑gear reduction
Thrust Bearing: Built‑in thrust bearing
Damping: AVR damping system (resilient mount)
Flexible Coupling (opt.): VULKAN (MEGIFLEX‑B optional)

VED Models & Key Data

Nominal Power: 60 / 100 / 150 / 200 / 300 kW (selection)
Max Propeller Speed: 900 rpm
Typical Reduction Ratios: 1.5 – 2.8
Typical Dimension (example): 599 × 581 × 693 mm (H × W × D)
Weight (example): ≈ 240 kg

Electrical Scope

e‑Motor: Permanent‑magnet AC motor (partner models selectable)
Converter: DC → AC converter (integrated/control interface)
Control: GCS / drive control interface
