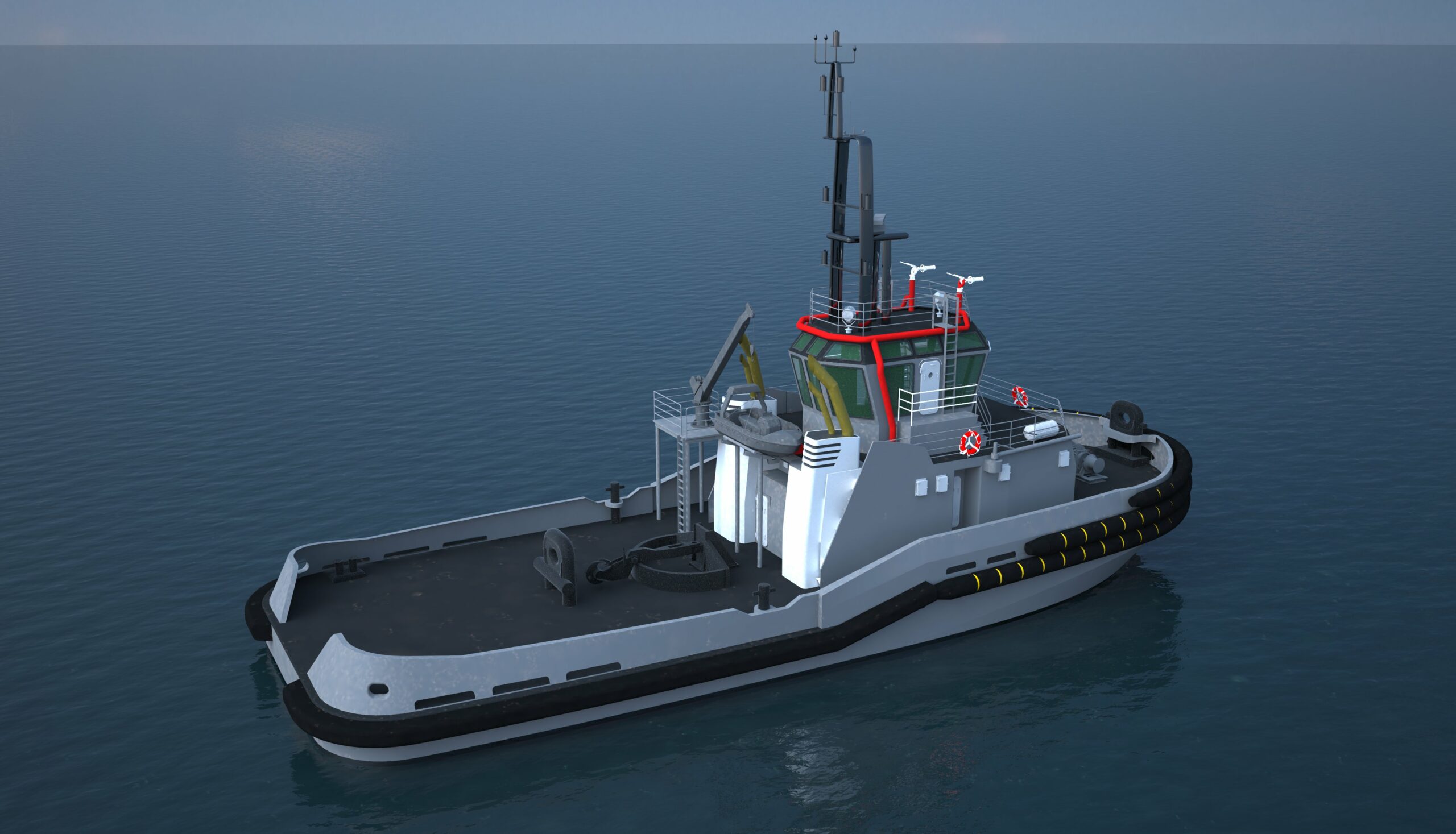

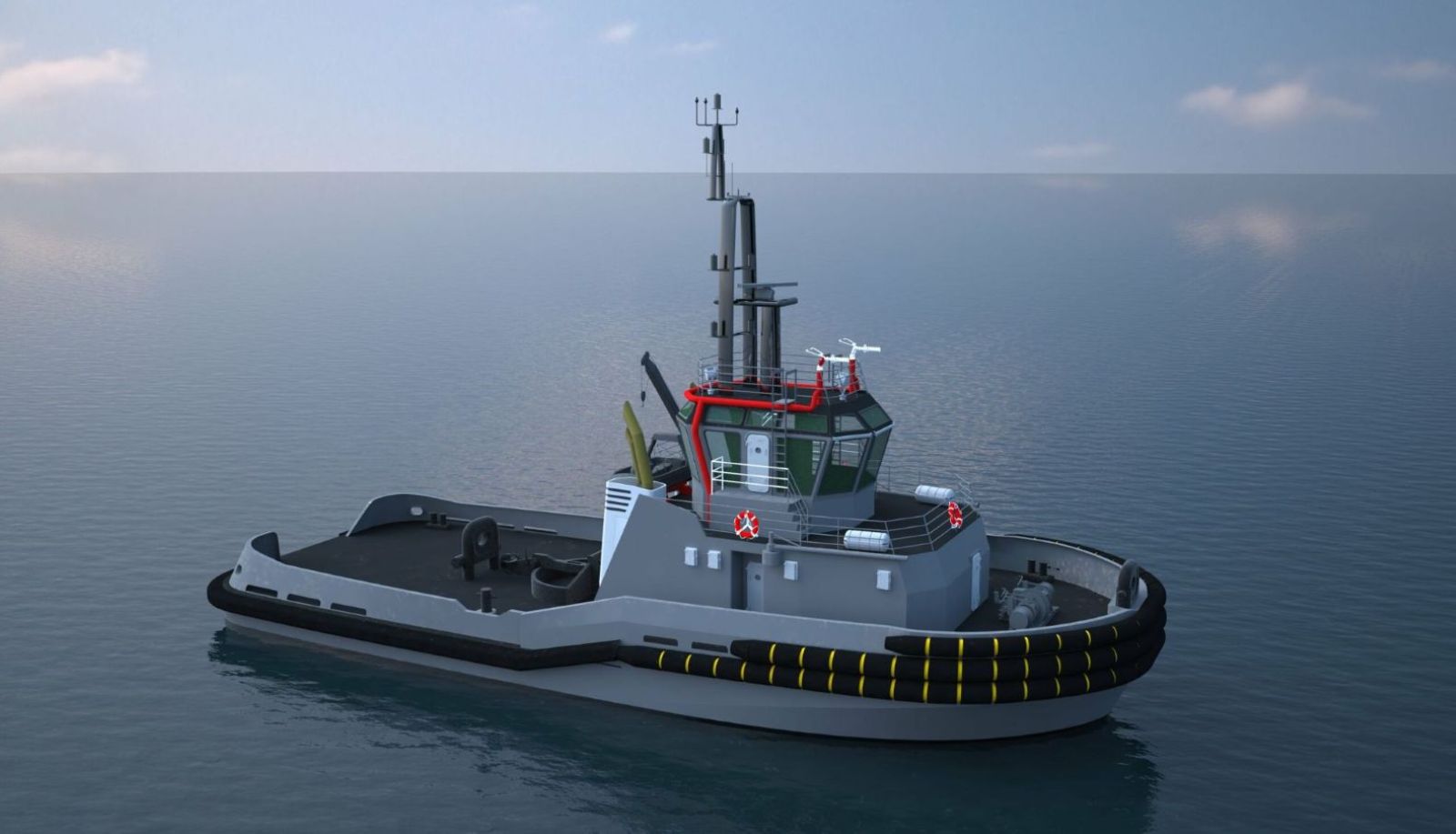

E-Barge PM3040E Exterior

PM3040E Series

Full Electric Tug

View Specifications

Key Features

The PM3040E is a zero-emission tugboat with classic design, excellent maneuverability, smart technology, and dynamic positioning, enabling safe offshore work and supporting the growth of environmentally friendly ports.

Zero Emission

100% electric propulsion system with zero local emissions, contributing to cleaner waterway environments.

Powerful BP

The tugboat features a strong 40-ton bollard pull, capable of handling various complex port operation demands.

Advanced Control

Precise maneuvering capabilities with General Energies' EMS systems for safe pilot transfers in challenging conditions.

Enhanced Safety

Equipped with two independent systems, the vessel ensures uninterrupted propulsion and safety even if one power source fails.

Specifications

Dimensions

LOA 30.5 m
LWL 28.74 m
B max 10.00 m
Depth 3.90 m
Draft 3.9 m
Displacement 625 Tons

Performance

Fix Point BP 40 t
Cruising speed 12.8 knots
Crew 8 persons
Battery 6000kWh@ ESS
Battery Charge 1 x DC Fast Connection

Full Electric Propulsion System

E-Propulsion PM motor 2×1200kW
DC- Link Panel & AC SWBD DC1000V&AC400V

Let us help you meet your needs for electric ships

"

By providing optimal technical solutions, the company's expert team is dedicated to helping shipowners reduce their carbon footprint and energy costs.
