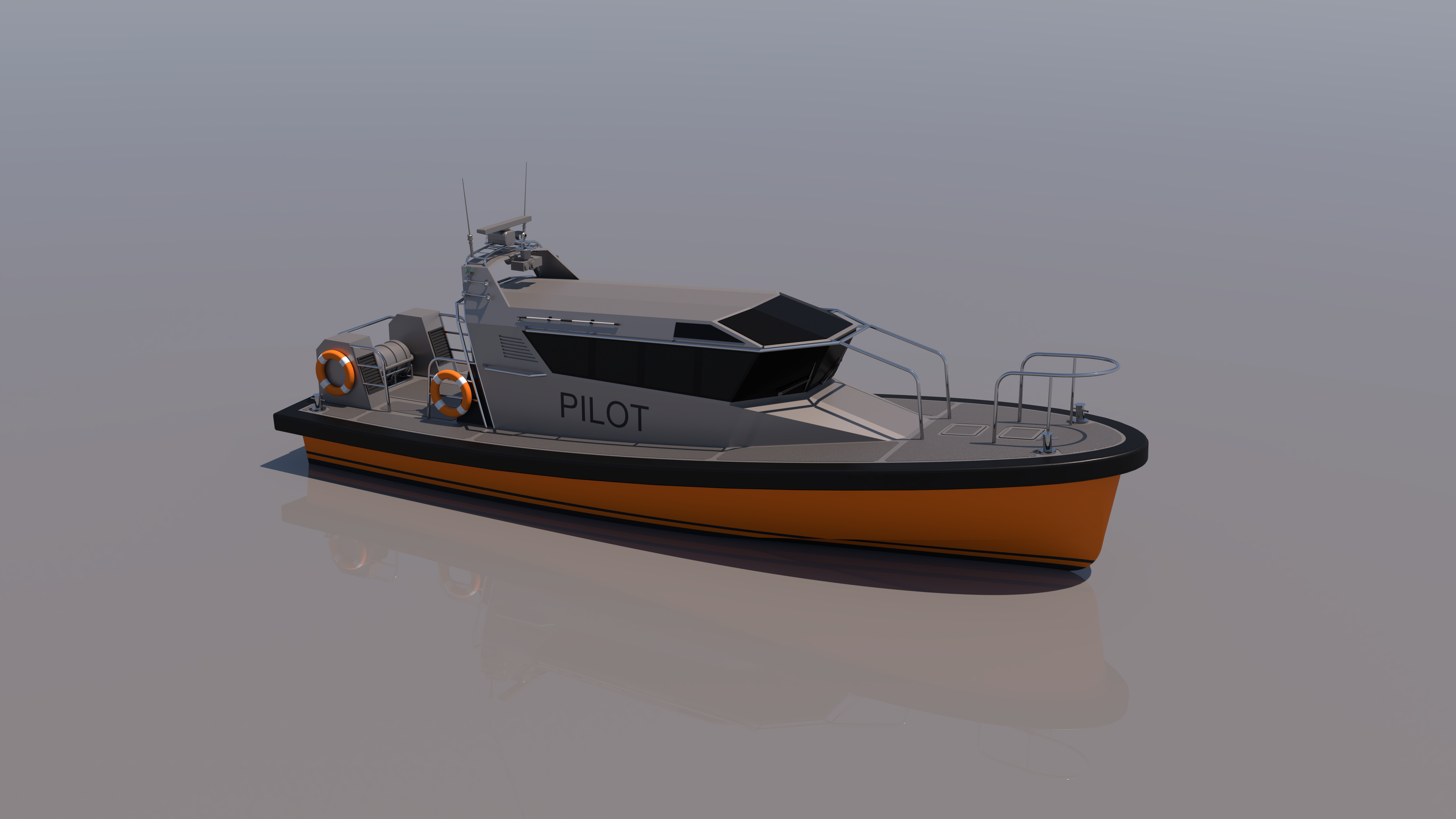

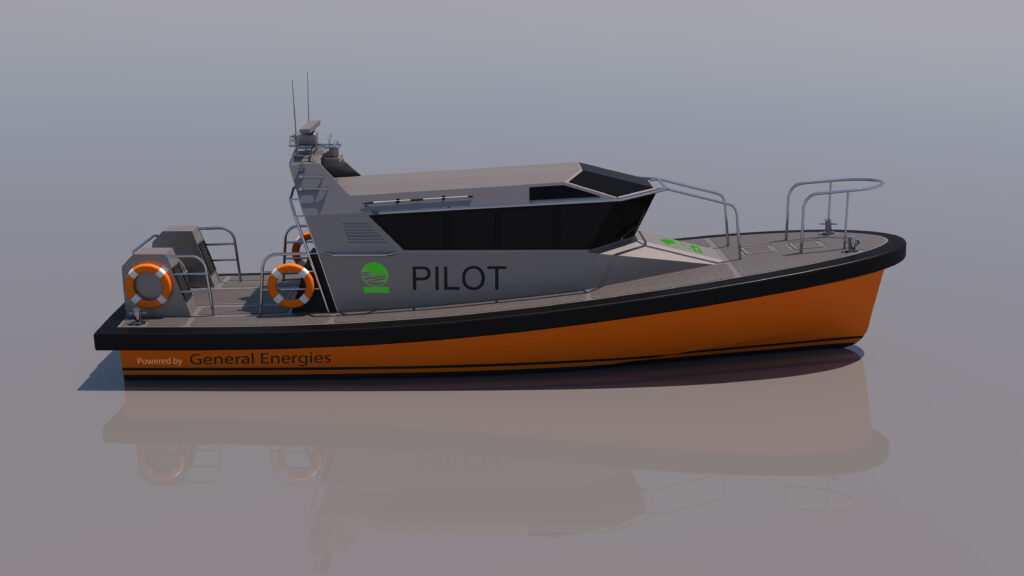

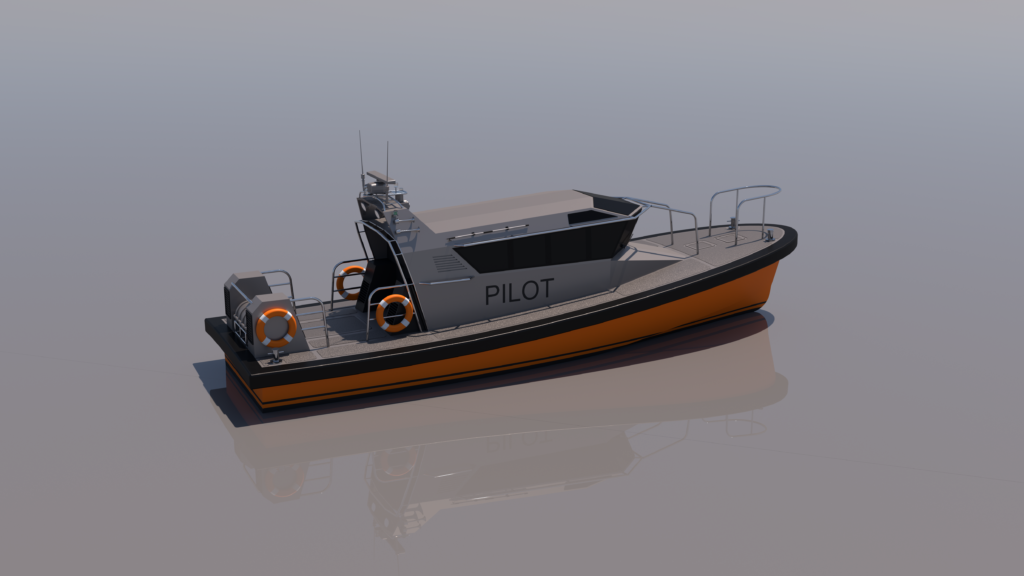

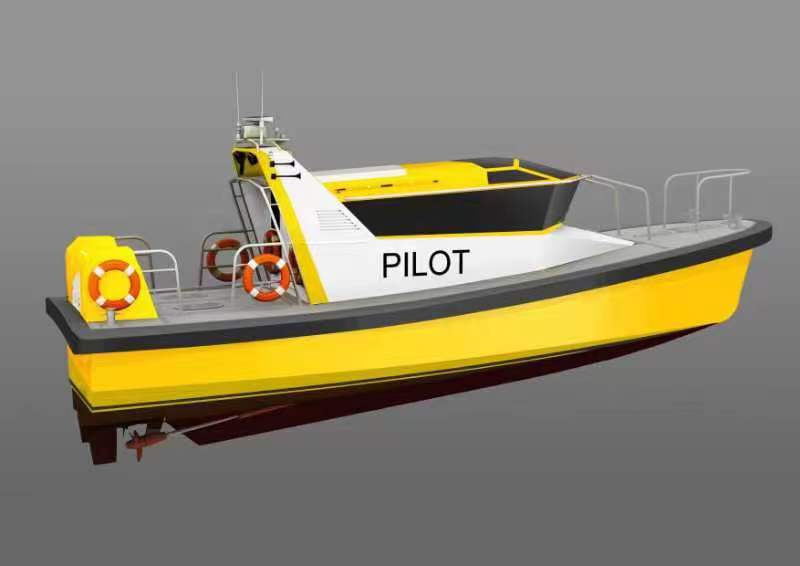

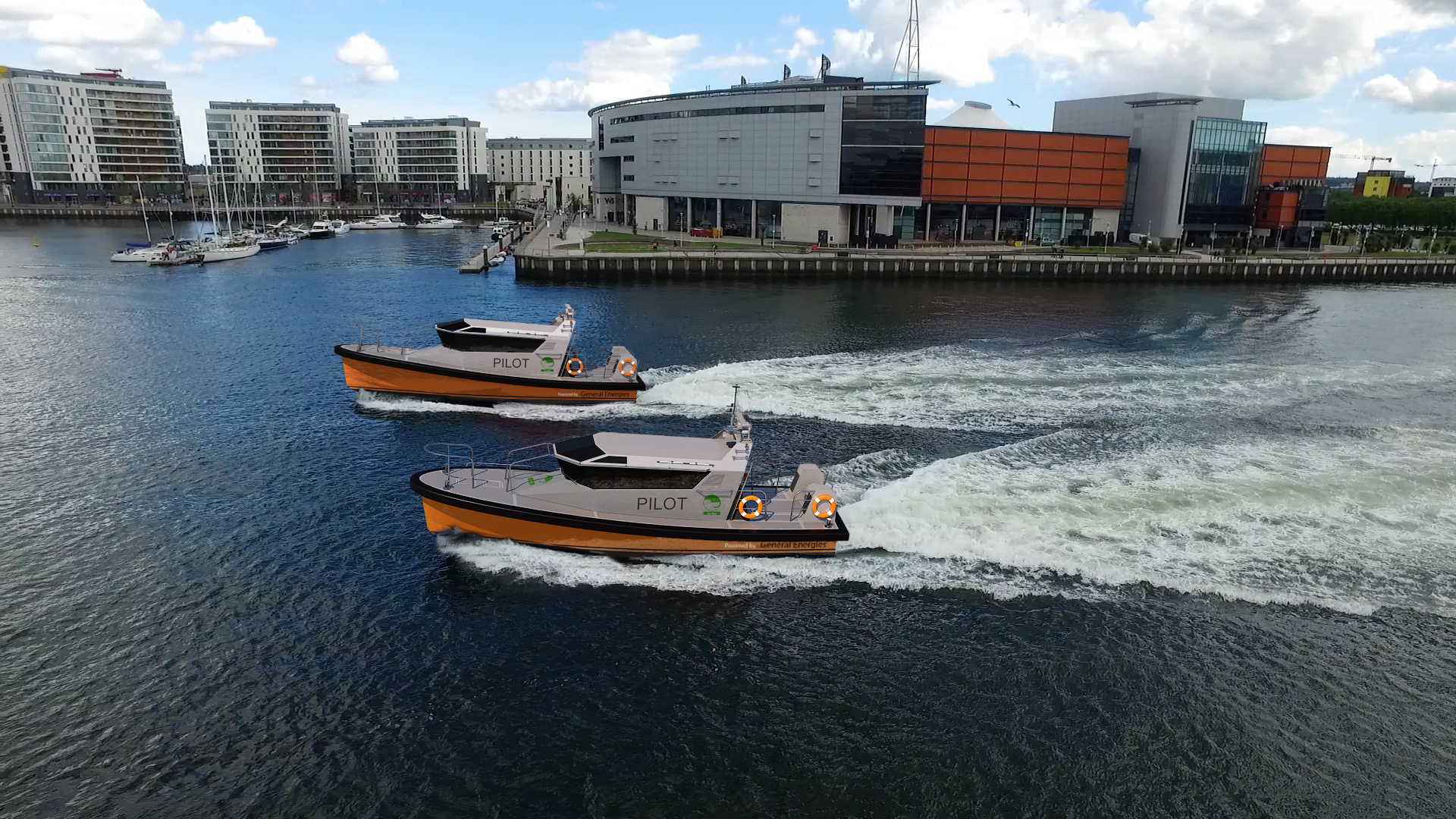

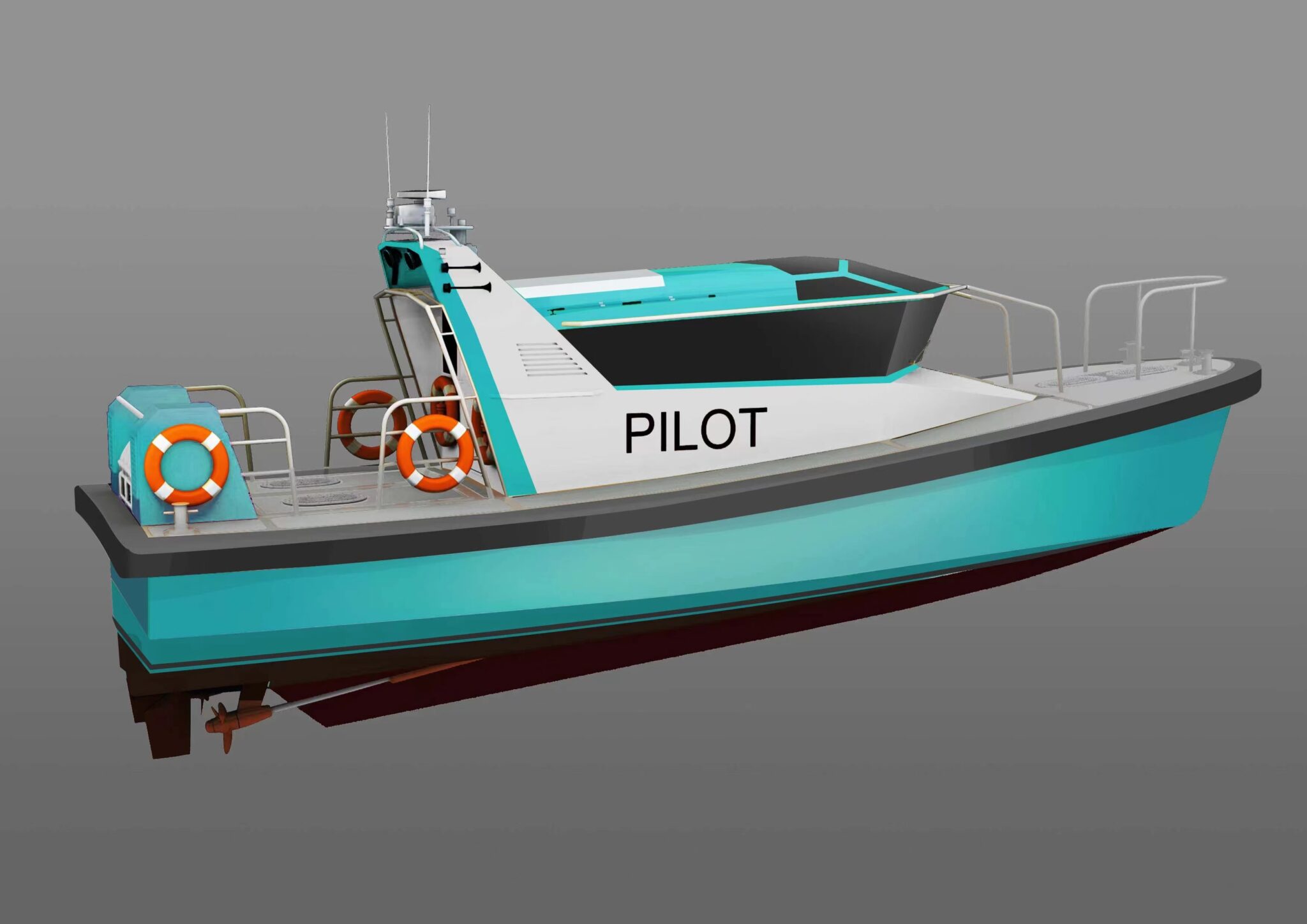

E-Pilot Exterior

EEL Series

Full Electric Pilot Vessel

View Specifications

Key Features

Designed for transporting pilots, crew, passengers, and engineers for large ships.

Zero Emission

100% electric propulsion system with zero local emissions, contributing to cleaner harbor environments.

Advanced Control

Precise maneuvering capabilities with General Energies' EMS systems for safe pilot transfers in challenging conditions.

Enhanced Safety

Equipped with two independent systems, the vessel ensures uninterrupted propulsion and safety even if one power source fails.

Classic Design

The entire vessel was designed by Italy's MASS Design Studio, with multiple certifications. It features an elegant exterior and a well-organized interior layout.

Specifications

Dimensions

LOA 13.6 m
B max 4.22 m
Draft 0.82m
Displacement 13 t
Hull and Superstructure Aluminum alloy 5083
FRP fiberglass

Performance

Cruising speed 8 knots
Max speed 18 knots
Endurance time 7 hour @ 8 knots
Range 56 Nm
Crew 2 persons
Passengers 12 persons
Battery LF 2 x 193.5 kWh
Battery Charge AC380V

Full Electric Propulsion System

Propulsion motor 2 x 150kW

Electrical System

DC link DC Link system (DC750V)

Let us help you meet your needs for electric ships

"

By providing optimal technical solutions, the company's expert team is dedicated to helping shipowners reduce their carbon footprint and energy costs.
