E-Barge PM3040E Exterior

CTV 26m

Hybrid Solution

View Specifications

Key Features

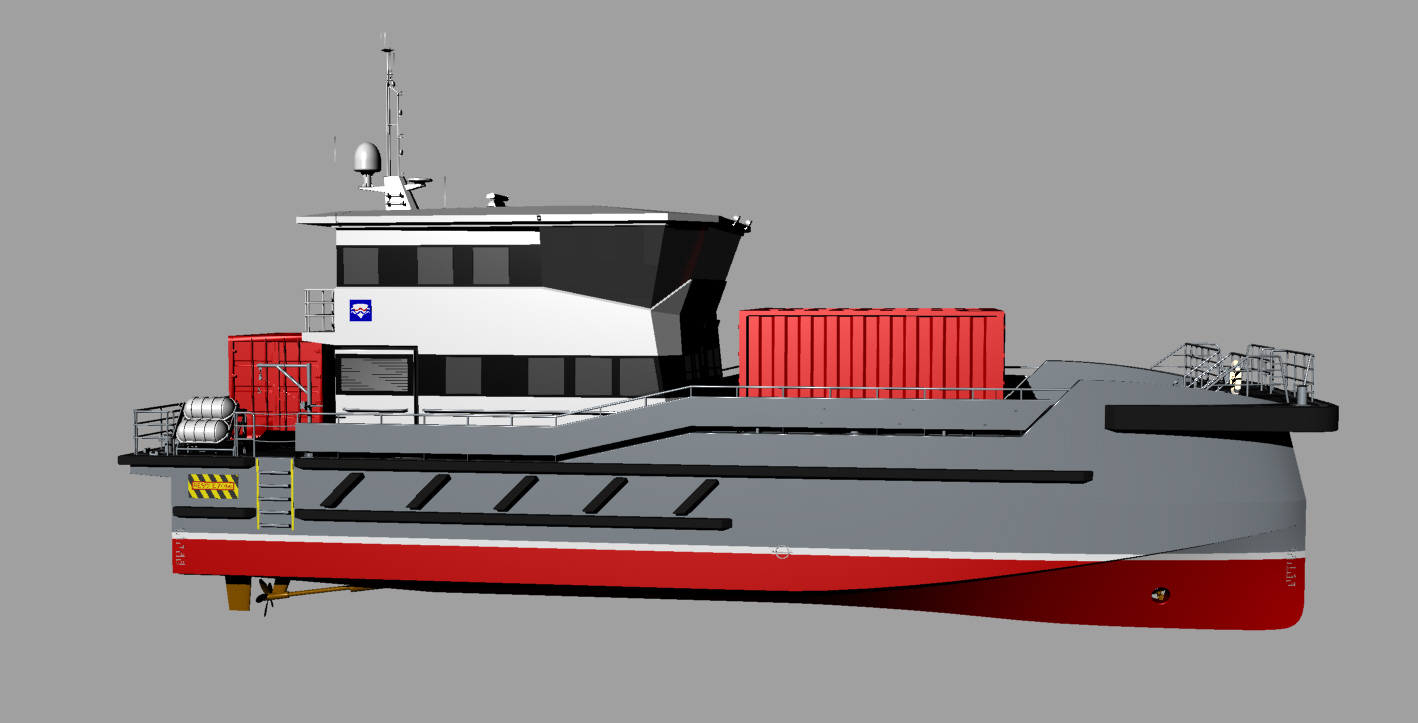

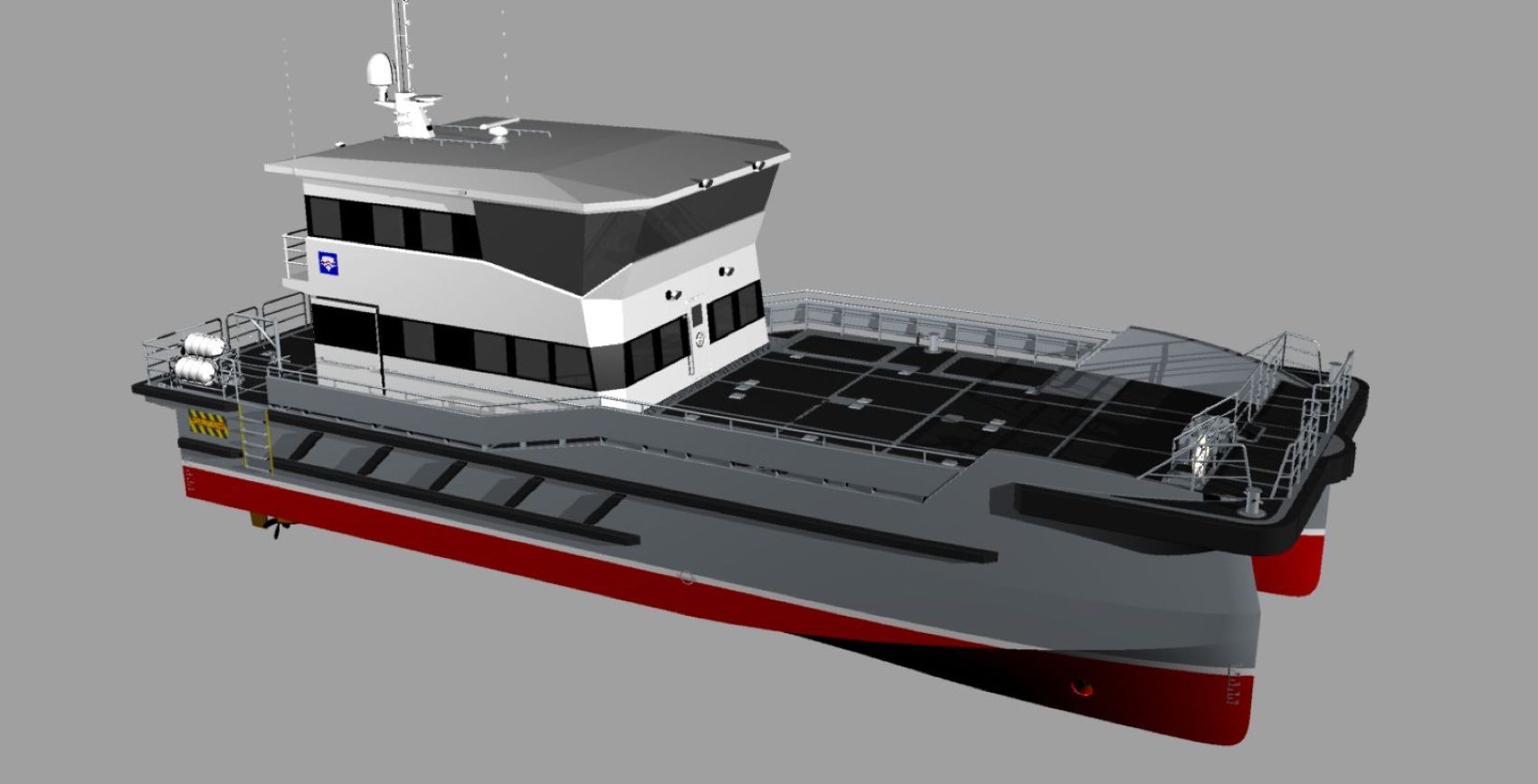

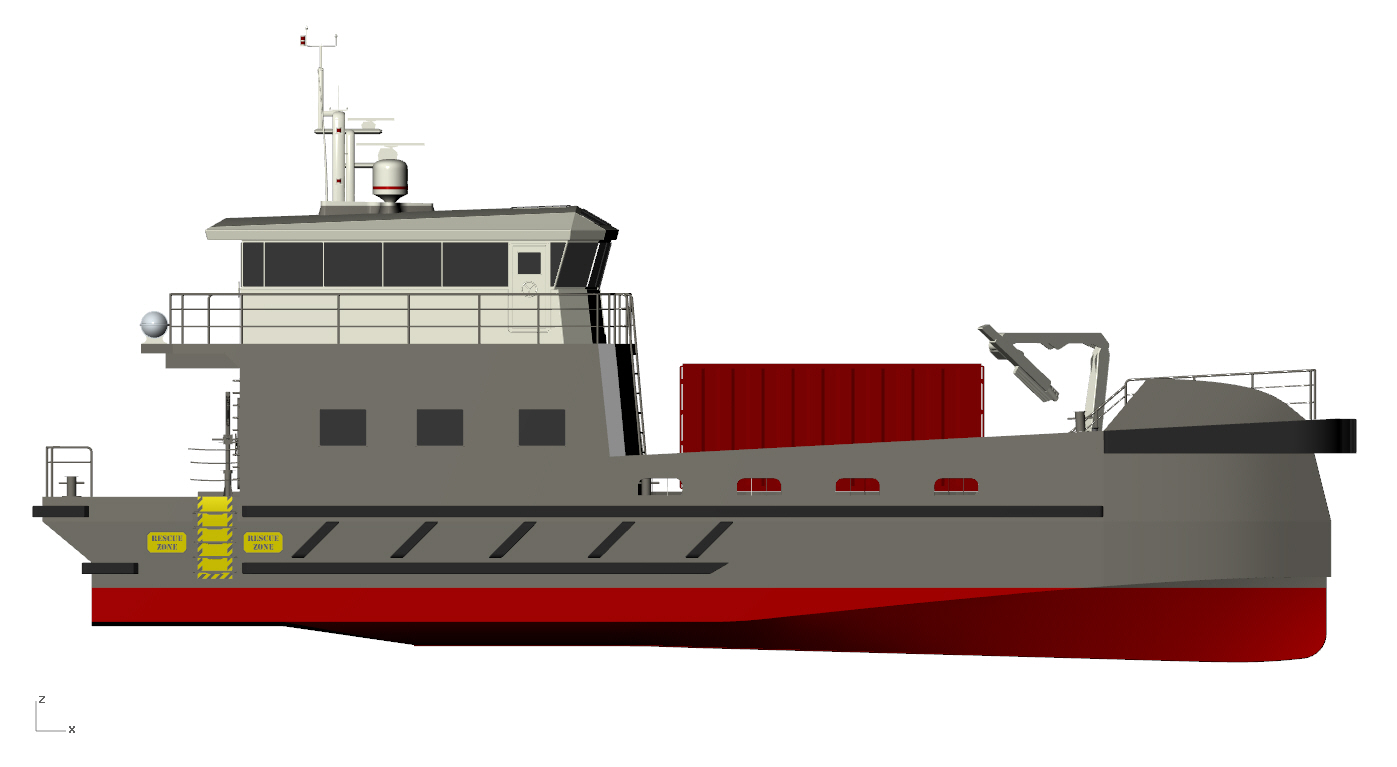

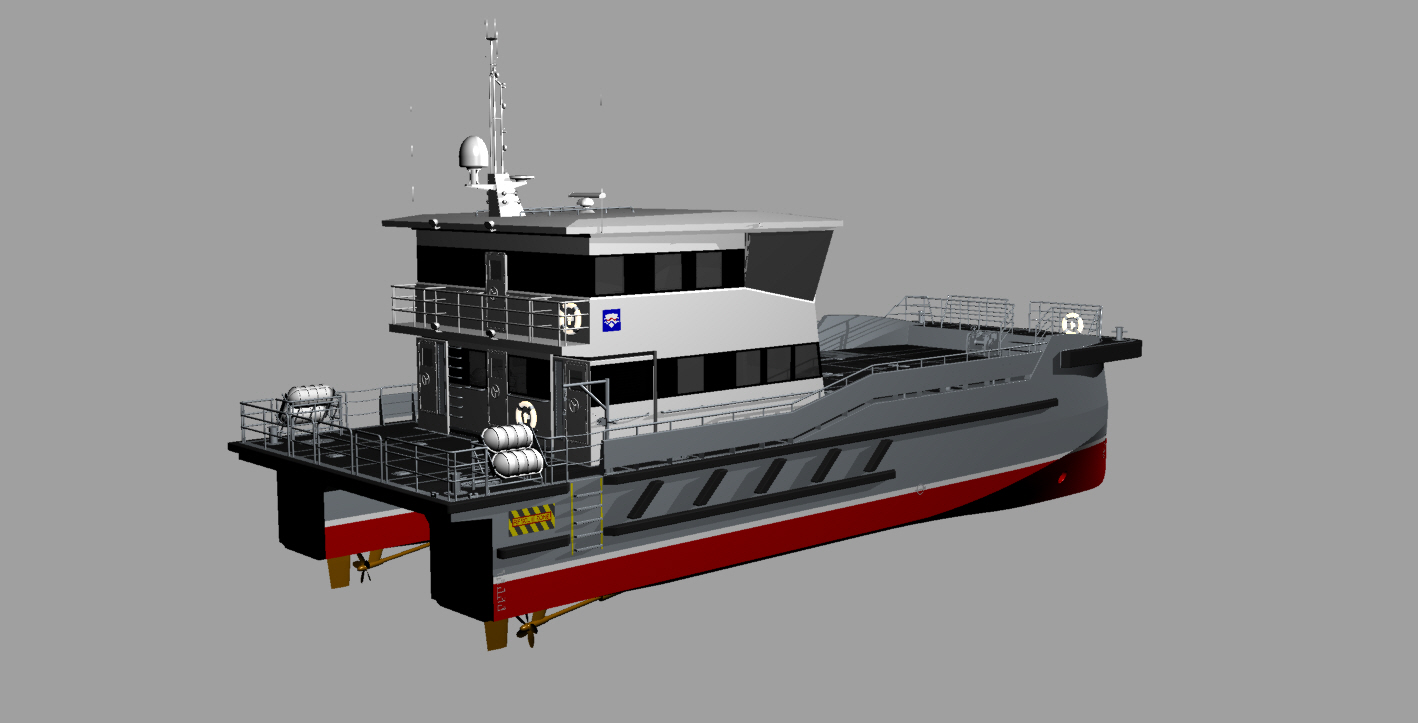

This prototype of this CTV was constructed in one of UK shipyard and is suitable for maintaining wind farms in the North Sea.

Extended Endurance

The vessel adopts a series hybrid system, with the generator providing extended endurance for the ship.

High Velocity

A top speed of up to 27 knots provides the vessel with rapid maneuverability, offering effective solutions for complex operating conditions.

Advanced Control

Precise maneuvering capabilities with General Energies' EMS systems for safe pilot transfers in challenging conditions.

Enhanced Safety

Equipped with two independent systems, the vessel ensures uninterrupted propulsion and safety even if one power source fails.

Specifications

Dimensions

LOA 26 m
B max 9.5 m
Depth 3.6 m
Draft (light load) 1.3 m
Displacement 625 Tons

Performance

Cruising Range >1000Nm
Cruising Speed 18 knots
Crew 8 persons
Maximum Speed 27 knots
Payload 20t
Wave Resistance Class 4th class (wave height 2 m)
Grounding Capability Yes
Passengers 12
Crews 6

Propulsion System

Diesel Engines 2x CAT C32/1300hp
Diesel Generators 2x CAT C2.2/20kW
Electric Motor/Generator 2x1FV5168-8/135kW
Battery 2x 104kWh

Let us help you meet your needs for electric ships

"

By providing optimal technical solutions, the company's expert team is dedicated to helping shipowners reduce their carbon footprint and energy costs.
