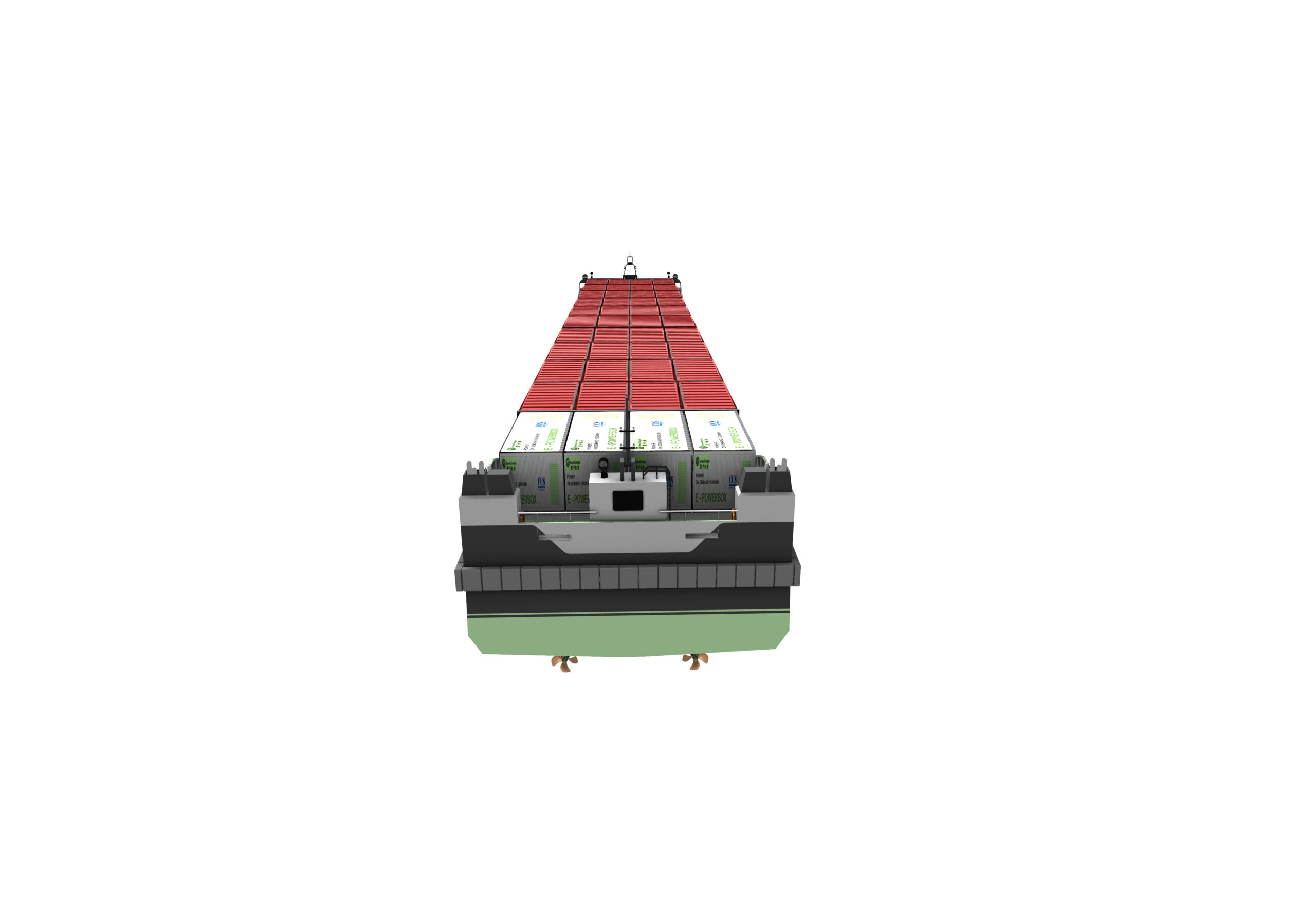

E-Barge PM120E Exterior

PM120E

Full Electric

View Specifications

Key Features

The PM120E is powered by four containerized battery packs, providing power to the entire vessel, and it can carry 120 TEU containers.

Zero Emission

100% electric propulsion system with zero local emissions, contributing to cleaner waterway environments.

High Capacity

Optimized cargo hold design with maximum payload capacity of 120 TEU for efficient transport operations.

Advanced Control

Precise maneuvering capabilities with General Energies' EMS systems for safe pilot transfers in challenging conditions.

Enhanced Safety

Equipped with two independent systems, the vessel ensures uninterrupted propulsion and safety even if one power source fails.

Specifications

Dimensions

LOA 80 m
Bridge H 6.7 m
Beam 12.6 m
Depth 4.7 m
Draft 3.0 m
Displacement 2608 Tons

Performance

Cruising Range 347Km
Cruising Speed 7 knots
Maximum Speed 10 knots
Crews 8 persons
Battery 4 ×1548kWh

Full Electric Propulsion System

Standard Version

Main propulsion power 2 x 300kW

Performance Version

Main propulsion power 2 x 300kW

Let us help you meet your needs for electric ships

"

By providing optimal technical solutions, the company's expert team is dedicated to helping shipowners reduce their carbon footprint and energy costs.
